Products

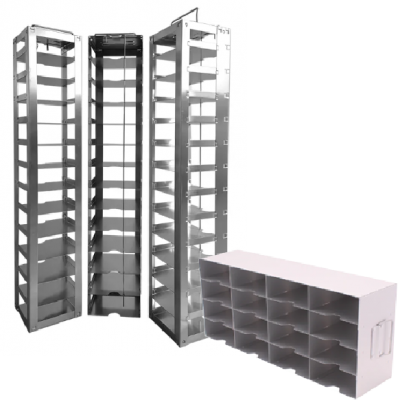

Rack

Description

Products Description

•storage of cryotubes in racks / boxes

•suitable for all common manufacturers

•value-for-money, highly compact storage without locking at the individual levels

•highly compact and safe storage with spring clip at every individual level

•highly compact and doubly safe through retaining lip in every individual level and extra pivoting drawer bar for central locking

•maximum capacity as adjustable to every type and height

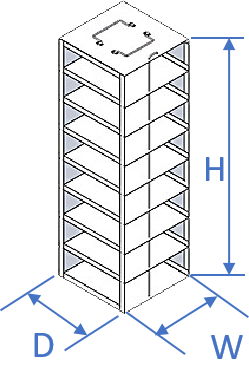

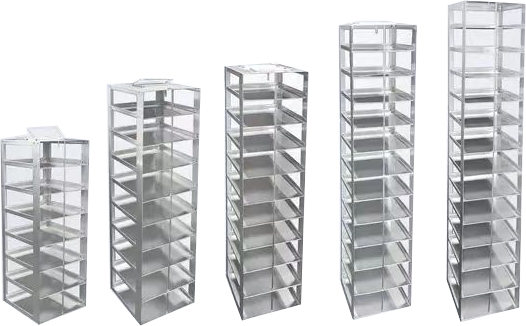

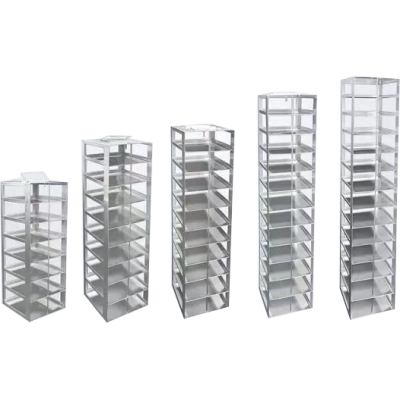

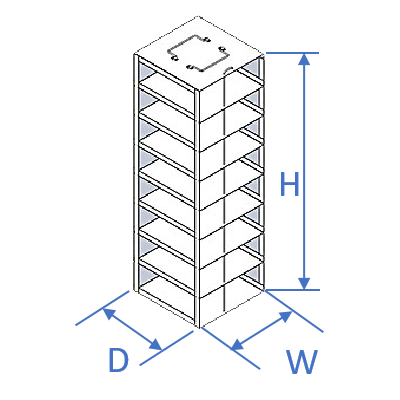

Rack Vertical



For 2" Cellbox


Part No.DescriptionBox
Height		Box
Capacity		MaterialDimension
DxWxH (")
RV1A-2.0-6-0-S2" Cellbox, 6   layer, SS2.0"6SS 3045.6X5.56X13.0
RV1A-2.0-7-0-S2" Cellbox, 7   layer, SS2.0"7SS 3045.6X5.56X15.2
RV1A-2.0-8-0-S2" Cellbox, 8   layer, SS2.0"8SS 3045.6X5.56X17.3
RV1A-2.0-9-0-S2" Cellbox, 9   layer, SS2.0"9SS 3045.6X5.56X19.5
RV1A-2.0-10-0-S2" Cellbox, 10   layer, SS2.0"10SS 3045.6X5.56X21.7
RV1A-2.0-11-0-S2" Cellbox, 11   layer, SS2.0"11SS 3045.6X5.56X23.9
RV1A-2.0-12-0-S2" Cellbox, 12   layer, SS2.0"12SS 3045.6X5.56X26.0
RV1A-2.0-13-0-S2" Cellbox, 13   layer, SS2.0"13SS 3045.6X5.56X28.2
RV1A-2.0-14-0-S2" Cellbox, 14   layer, SS2.0"14SS 3045.6X5.56X30.5
RV1A-2.0-15-0-S2" Cellbox, 15   layer, SS2.0"15SS 3045.6X5.56X32.7


Part No.Description

Box

Height

Box

Capacity

MaterialDimension
DxWxH (")
RV1A-2.0-3-0-A2" Cellbox, 3   layer, Alu2.0"3Alu 5052-H325.6X5.56X7.6
RV1A-2.0-4-0-A2" Cellbox, 4   layer, Alu2.0"4Alu 5052-H325.6X5.56X9.8
RV1A-2.0-5-0-A2" Cellbox, 5   layer, Alu2.0"5Alu 5052-H325.6X5.56X12.0
RV1A-2.0-6-0-A2" Cellbox, 6   layer, Alu2.0"6Alu 5052-H325.6X5.56X13.1
RV1A-2.0-7-0-A2" Cellbox, 7   layer, Alu2.0"7Alu 5052-H325.6X5.56X15.2
RV1A-2.0-8-0-A2" Cellbox, 8   layer, Alu2.0"8Alu 5052-H325.6X5.56X17.4
RV1A-2.0-9-0-A2" Cellbox, 9   layer, Alu2.0"9Alu 5052-H325.6X5.56X19.6
RV1A-2.0-10-0-A2" Cellbox, 10   layer, Alu2.0"10Alu 5052-H325.6X5.56X21.8
RV1A-2.0-11-0-A2" Cellbox, 11   layer, Alu2.0"11Alu 5052-H325.6X5.56X23.9
RV1A-2.0-12-0-A2" Cellbox, 12   layer, Alu2.0"12Alu 5052-H325.6X5.56X26.1
RV1A-2.0-13-0-A2" Cellbox, 13   layer, Alu2.0"13Alu 5052-H325.6X5.56X28.2
RV1A-2.0-14-0-A2" Cellbox, 14   layer, Alu2.0"14Alu 5052-H325.6X5.56X30.3
RV1A-2.0-15-0-A2" Cellbox, 15   layer, Alu2.0"15Alu 5052-H325.6X5.56X32.5


For 3" Cellbox

Part No.DescriptionBox
Height		Box
Capacity		MaterialDimension
DxWxH  (")
RV1A-3.0-3-0-S3" Cellbox, 3   layer, SS3.0"3SS 3045.6X5.56X9.4
RV1A-3.0-4-0-S3" Cellbox, 4   layer, SS3.0"4SS 3045.6X5.56X12.6
RV1A-3.0-5-0-S3" Cellbox, 5   layer, SS3.0"5SS 3045.6X5.56X15.8
RV1A-3.0-6-0-S3" Cellbox, 6   layer, SS3.0"6SS 3045.6X5.56X19.0
RV1A-3.0-7-0-S3" Cellbox, 7   layer, SS3.0"7SS 3045.6X5.56X22.2
RV1A-3.0-8-0-S3" Cellbox, 8   layer, SS3.0"8SS 3045.6X5.56X25.4
RV1A-3.0-9-0-S3" Cellbox, 9   layer, SS3.0"9SS 3045.6X5.56X28.6
RV1A-3.0-10-0-S3" Cellbox, 10   layer, SS3.0"10SS 3045.6X5.56X31.8


Part No.DescriptionBox
Height		Box
Capacity		MaterialDimension
DxWxH(")
RV1A-3.0-3-0-A3" Cellbox, 3   layer, Alu3.0"3Alu 5052-H325.6X5.56X9.4
RV1A-3.0-4-0-A3" Cellbox, 4   layer, Alu3.0"4Alu 5052-H325.6X5.56X12.6
RV1A-3.0-5-0-A3" Cellbox, 5   layer, Alu3.0"5Alu 5052-H325.6X5.56X15.8
RV1A-3.0-6-0-A3" Cellbox, 6   layer, Alu3.0"6Alu 5052-H325.6X5.56X19.0
RV1A-3.0-7-0-A3" Cellbox, 7   layer, Alu3.0"7Alu 5052-H325.6X5.56X22.2
RV1A-3.0-8-0-A3" Cellbox, 8   layer, Alu3.0"8Alu 5052-H325.6X5.56X25.4
RV1A-3.0-9-0-A3" Cellbox, 9   layer, Alu3.0"9Alu 5052-H325.6X5.56X28.6
RV1A-3.0-10-0-A3" Cellbox, 10   layer, Alu3.0"10Alu 5052-H325.6X5.56X31.8

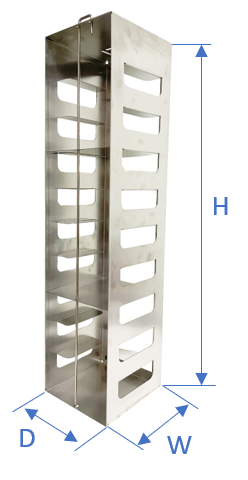

Rack Vertical (Integrated frame)

Integrated frame.png

For 2" Cellbox


Part No.DescriptionBox
Height		Box
Capacity		MaterialDimension
DxWxH (")
RV2B-2.0-6-1-0-S2" Cellbox, 6   layer, SS2.0"6SS 3045.6X5.56X13.0
RV2B-2.0-7-1-0-S2" Cellbox, 7   layer, SS2.0"7SS 3045.6X5.56X15.2
RV2B-2.0-8-1-0-S2" Cellbox, 8   layer, SS2.0"8SS 3045.6X5.56X17.3
RV2B-2.0-9-1-0-S2" Cellbox, 9   layer, SS2.0"9SS 3045.6X5.56X19.5
RV2B-2.0-10-1-0-S2" Cellbox, 10   layer, SS2.0"10SS 3045.6X5.56X21.7
RV2B-2.0-11-1-0-S2" Cellbox, 11   layer, SS2.0"11SS 3045.6X5.56X23.9
RV2B-2.0-12-1-0-S2" Cellbox, 12   layer, SS2.0"12SS 3045.6X5.56X26.0
RV2B-2.0-13-1-0-S2" Cellbox, 13   layer, SS2.0"13SS 3045.6X5.56X28.2
RV2B-2.0-14-1-0-S2" Cellbox, 14   layer, SS2.0"14SS 3045.6X5.56X30.5
RV2B-2.0-15-1-0-S2" Cellbox, 15   layer, SS2.0"15SS 3045.6X5.56X32.7


For 3" Cellbox


Part No.DescriptionBox
Height		Box
Capacity		Material

Dimension

DxWxH(")

RV2B-3.0-3-0-S3" Cellbox, 3   layer, SS3.0"3SS 3045.6X5.56X9.4
RV2B-3.0-4-0-S3" Cellbox, 4   layer, SS3.0"4SS 3045.6X5.56X12.6
RV2B-3.0-5-0-S3" Cellbox, 5   layer, SS3.0"5SS 3045.6X5.56X15.8
RV2B-3.0-6-0-S3" Cellbox, 6   layer, SS3.0"6SS 3045.6X5.56X19.0
RV2B-3.0-7-0-S3" Cellbox, 7   layer, SS3.0"7SS 3045.6X5.56X22.2
RV2B-3.0-8-0-S3" Cellbox, 8   layer, SS3.0"8SS 3045.6X5.56X25.4
RV2B-3.0-9-0-S3" Cellbox, 9   layer, SS3.0"9SS 3045.6X5.56X28.6
RV2B-3.0-10-0-S3" Cellbox, 10   layer, SS3.0"10SS 3045.6X5.56X31.8

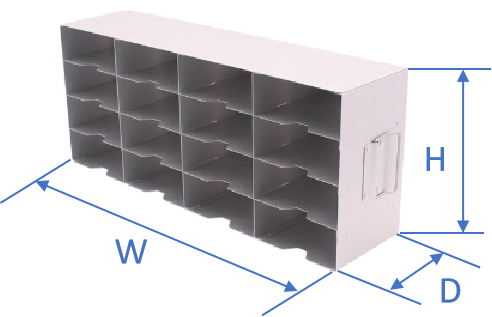

Rack Horizontal




Part No.DescriptionBox
Height		Box
Capacity		MaterialDimension
DxWxH (")
RU1A-2.0-4-0-S2" Cellbox, 4   layer, SS2.0"16SS 3045.7*22*9.25
RU1A-2.0-5-0-S2" Cellbox, 5   layer, SS2.0"20SS 3045.7*22*11.4
RU1A-2.0-6-0-S2" Cellbox, 6   layer, SS2.0"24SS 3045.7*22*13.4
RU1A-2.0-7-0-S2" Cellbox, 7   layer, SS2.0"28SS 3045.7*22*16.5
RU1A-3.0-3-0-S3" Cellbox, 3   layer, SS3.0"6SS 3045.7*11.4*11.6
RU1A-3.0-4-0-S3" Cellbox, 4   layer, SS3.0"12SS 3045.7*22*9.25
RU1A-3.0-5-0-S3" Cellbox, 5   layer, SS3.0"20SS 3045.7*22*16.5
RU1A-4.0-2-0-S4" Cellbox, 2   layer, SS4.0"4SS 3045.7*11.4*11.6
RU1A-4.0-3-0-S4" Cellbox, 3   layer, SS4.0"12SS 3045.7*22*16.5

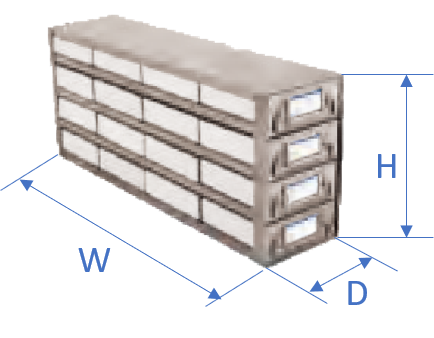

Rack Drawer

Rack Drawer1.pngRack Drawer2.png

                                                                                                     3X4=12



Part No.DescriptionBox
Height		Box
Capacity		MaterialDimension
DxWxH (")
RD1A-2.0-4-0-S2"cell box, 2   layers, 2X22.0"4SS 3045.5*10.5*4.3
RD1A-2.0-6-0-S2"cell box, 3   layers, 2X32.0"6SS 3045.5*10.5*6.4
RD1A-2.0-9-0-S2"cell box, 3   layers, 3X32.0"9SS 3045.5*15.7*6.4
RD1A-2.0-16-0-S2"cell box, 4   layers, 4X42.0"16SS 3045.5*21*8.5
RD1A-2.0-20-0-S2"cell box, 5   layers, 4X52.0"20SS 3045.5*21*10.6
RD1A-3.0-6-0-S3"cell box, 3   layers, 3X23.0"6SS 3045.5*15.7*6.3
RD1A-3.0-9-0-S3"cell box, 3   layers, 3X33.0"9SS 3045.5*15.7*9.4
RD1A-3.0-12-0-S3"cell box, 4   layers, 3X43.0"12SS 3045.5*15.7*12.5
